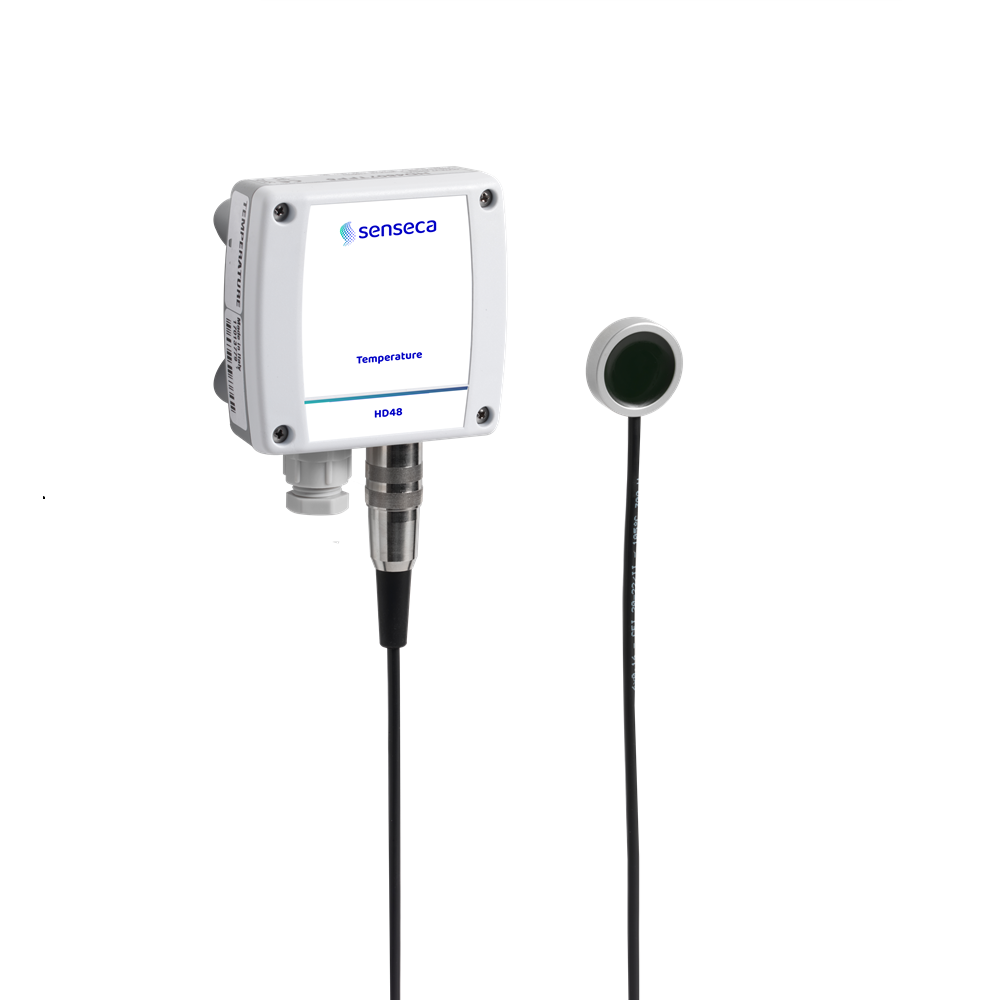

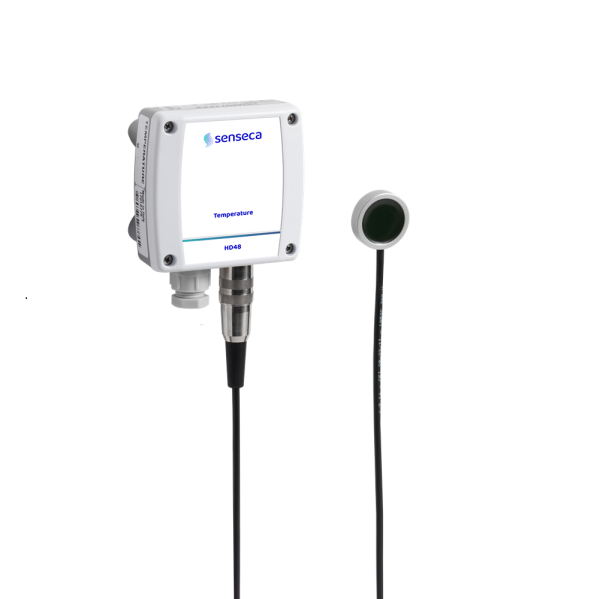

HD48…TFP – HD49…TFP – Temperature Transmitters for Solar Panel
Active and passive temperature transmitters for solar panel
Active (HD48…) and passive (HD49…) transmitters complete with contact temperature probe for photovoltaic panels with 5 or 10 m cable.
The probe is a round Pt100 sensor Ø 30 x 7.5 mm, 1/3 DIN.
The transmitter is available with following outputs:
- active analogue output 4÷20 mA (HD4807TFP…)
- 0÷10 V output (HD48V07TFP…)
- RS485 MODBUS-RTU output only (HD48S078TFP…)
- passive (2-wire) 4÷20 mA analogue output (HD4907TFP…)
All models can also be supplied with an optional display.
