Radiometric probe for outdoor use for measuring IRRADIANCE in the UVA spectral range (315…400 nm). Supplied with Calibration Report. On request CPM12AA4… cables with 4-pole M12 connector.

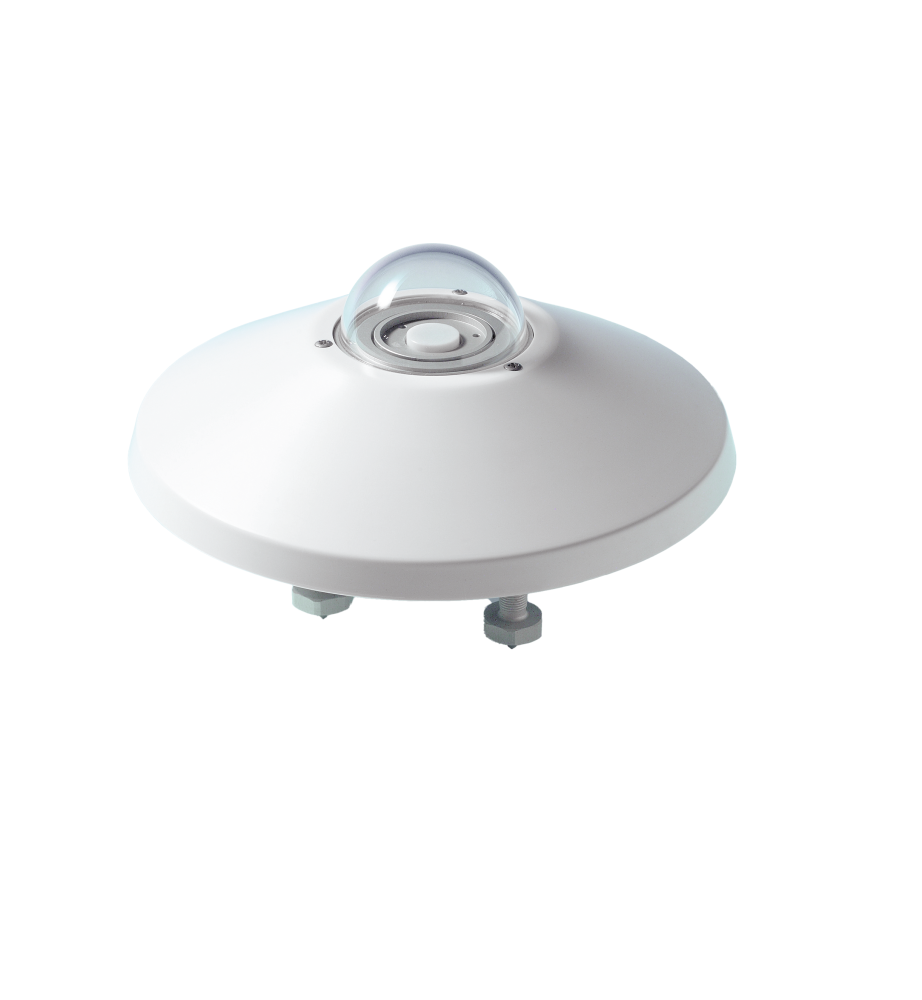

The LPUVA02 radiometer measures the broadband UVA irradiance on a plane surface (Watt/ m²). Measured irradiance is the result of the sum of direct solar
irradiance and of diffuse irradiance. TIt can measure as well the UVA irradiance in closed room.
The radiometer is produced in three versions:
- LPUVA02 – passive – μV per μW/cm² output;
- LPUVA02AC – active, 4…20 mA current output
- LPUVA02AV – active, 0…1 Vdc, 0…5 Vdc or 0…10 Vdc output (0…150 W/m²)
The irradiance range for the analog output is 0…200 W/m².
Each radiometer is individually calibrated at the factory and is distinguished by its own calibration factor. The calibration is performed by comparison with the primary standard of the Senseca metrology laboratory, using the emission line at 365 nm of a suitably filtered Xe-Hg lamp.
