Thunderstorm warning system for outdoor lightning risk

BTD-1

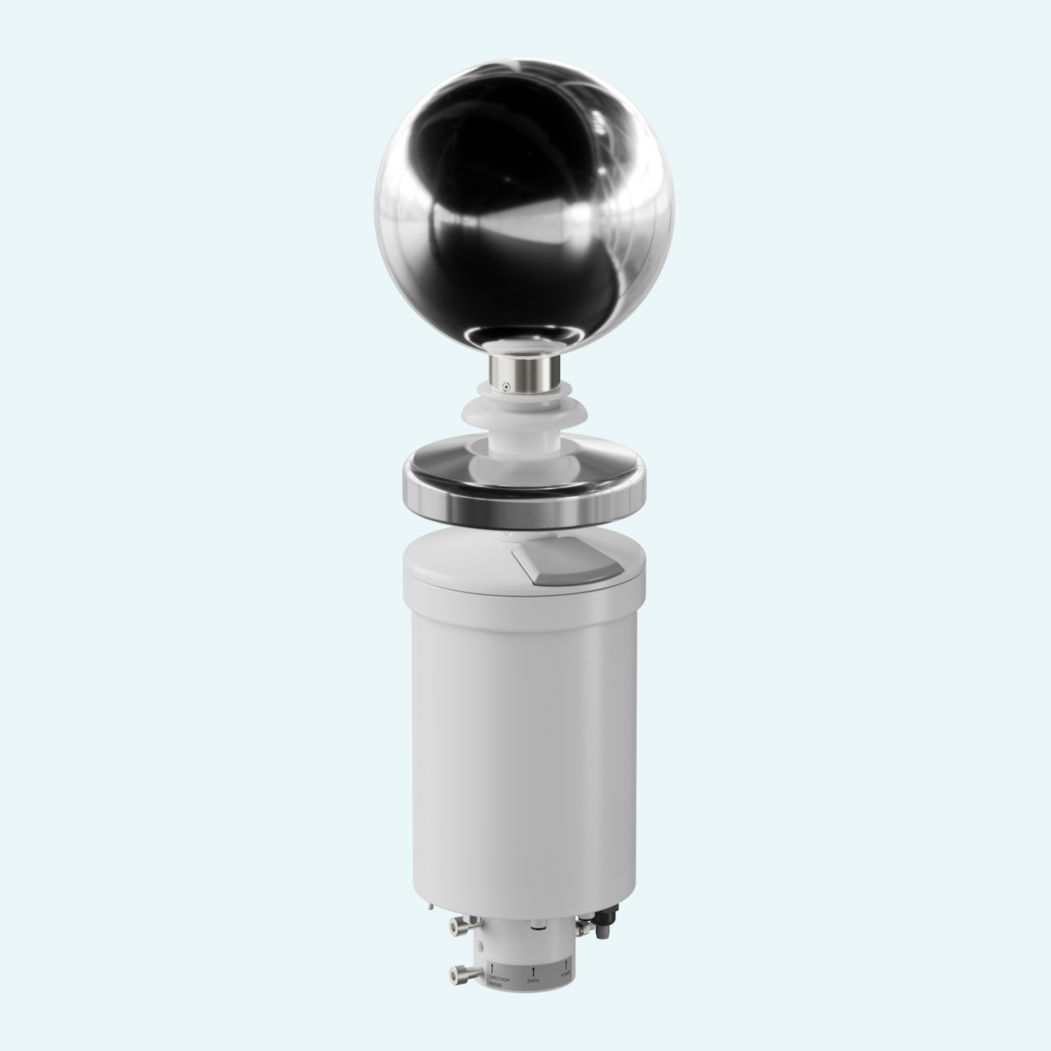

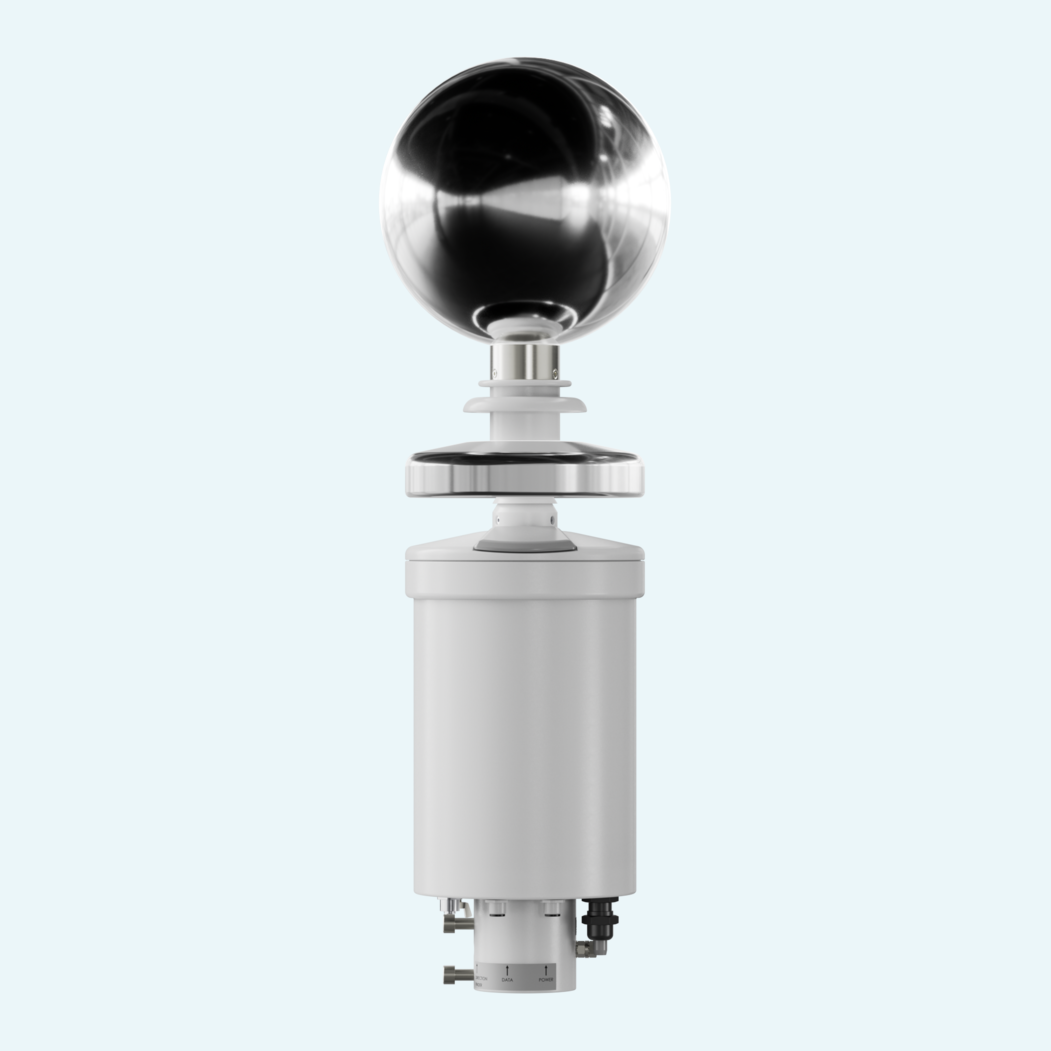

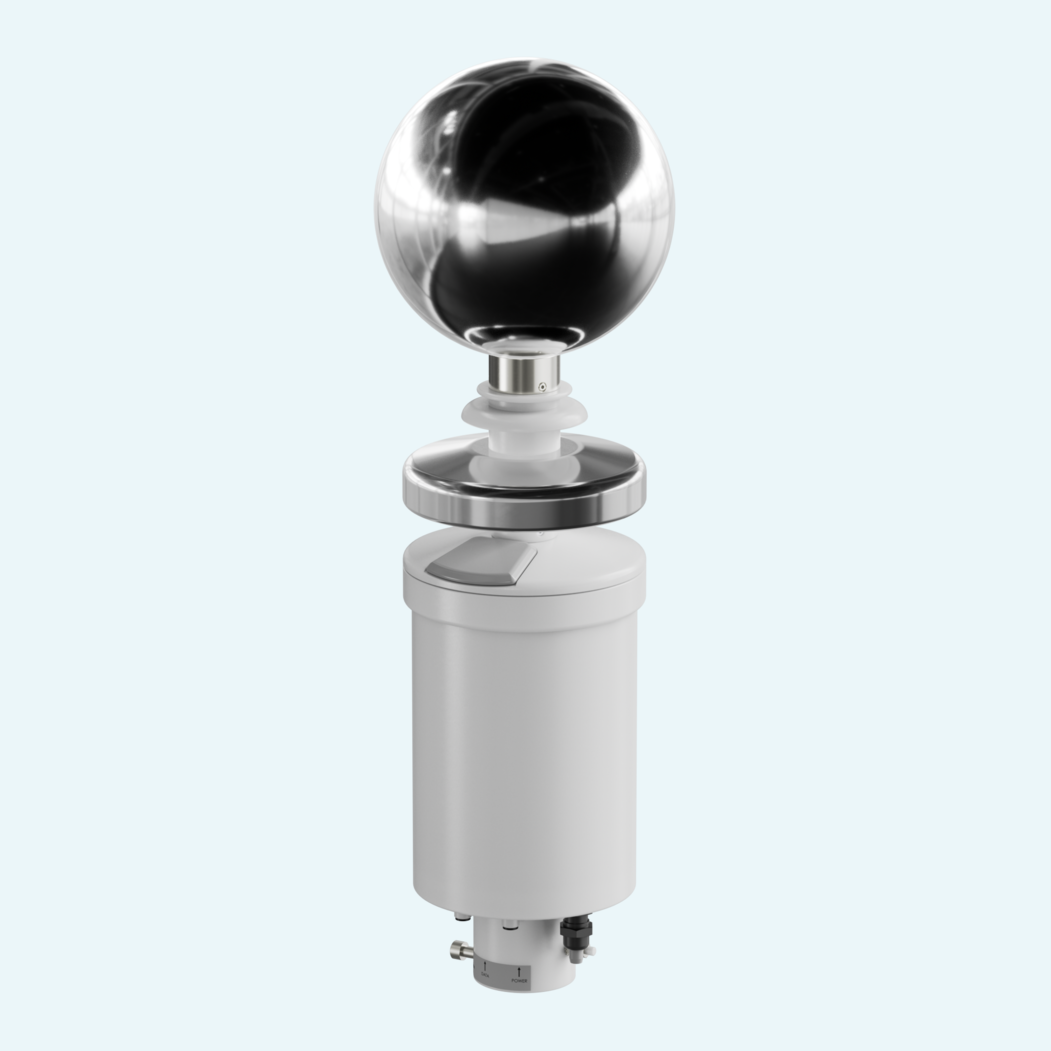

Thunderstorm warning system for outdoor lightning risk, detecting cloud-to-ground, intra-cloud and cloud-to-cloud flashes to 35 km as standard or 83 km optionally, with RS422, relays and IP66 housing.

Introduction

Outdoor lightning risk builds before the first nearby strike, so early warning matters most at that stage. The BTD-1 monitors the background quasi-electrostatic field to spot overhead thunderstorm conditions early, giving teams time to suspend outdoor work, move people to safe areas or start site-specific procedures. It suits renewable energy sites, airports, industrial plants and outdoor venues.


The BTD-1 is designed and documented to meet the requirements of IEC 62793:2020, so its warning performance is documented against that standard. It can also support preventive measures considered within the risk management framework of IEC 62305-2:2024.


It detects cloud-to-ground, intra-cloud and cloud-to-cloud lightning up to 35 km as standard, or 83 km optionally, and keeps false alarms below 1% within 35 km. RS422, three internal relays and 2-second broadcast messages support system integration. The aluminum housing carries ingress protection (IP66), uses stainless steel M12 connectors and has no moving parts.

Early risk warning
Warns of overhead thunderstorm conditions before the first nearby strike
Flexible range
Measures lightning to 35 km as standard, extendable to 83 km
Reliable detection
Detects cloud-to-ground, intra-cloud and cloud-to-cloud lightning
Severe storm insight
Identifies highly active storm cells linked to large hailstone risk
Integration ready
RS422, relays and 2-second broadcast messages support system integration
Outdoor design
IP66 aluminum housing with stainless steel M12 connectors and no moving parts

Features

Quasi-electrostatic detection

The sensor monitors the background quasi-electrostatic field to detect the presence and range of lightning flashes.

Storm event monitoring

The system identifies charged precipitation, strong electric field and severe storm conditions alongside lightning activity.

Configurable risk levels

Four risk levels, All-Clear, Caution, Warning and Alert, can be configured according to site requirements.

Serial communication

RS422 communication uses an ASCII command set with a broadcast message transmitted every two seconds.

Internal relays

Three relays can be configured for alert, warning and sensor fault functions for direct connection to external systems.

GPS/GNSS timing

The integrated GPS/GNSS module supports UTC-based flash timing, synchronized to GPS time within 30 ms.

Optional direction finder

The Direction Finder module provides lightning bearing when fitted and detected by the sensor.

Modular accessories

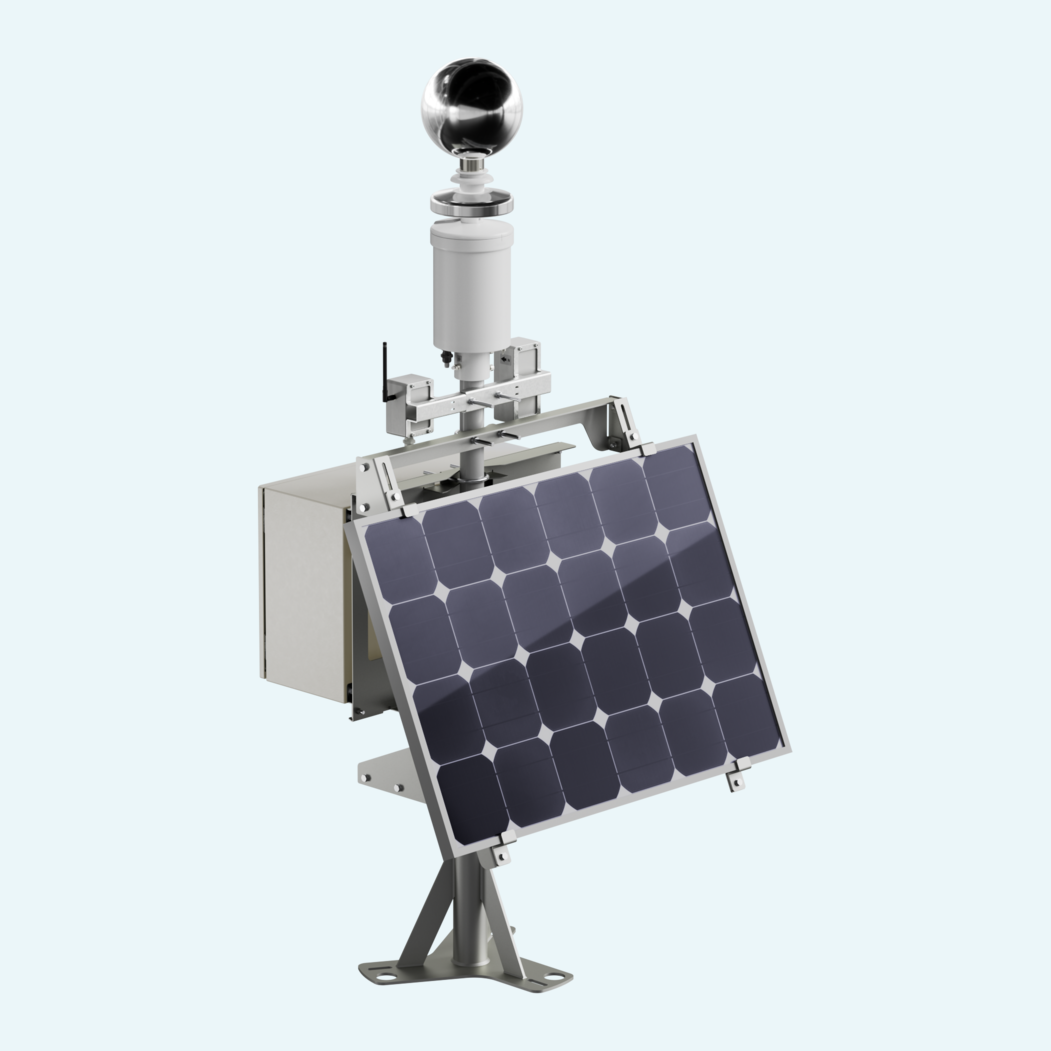

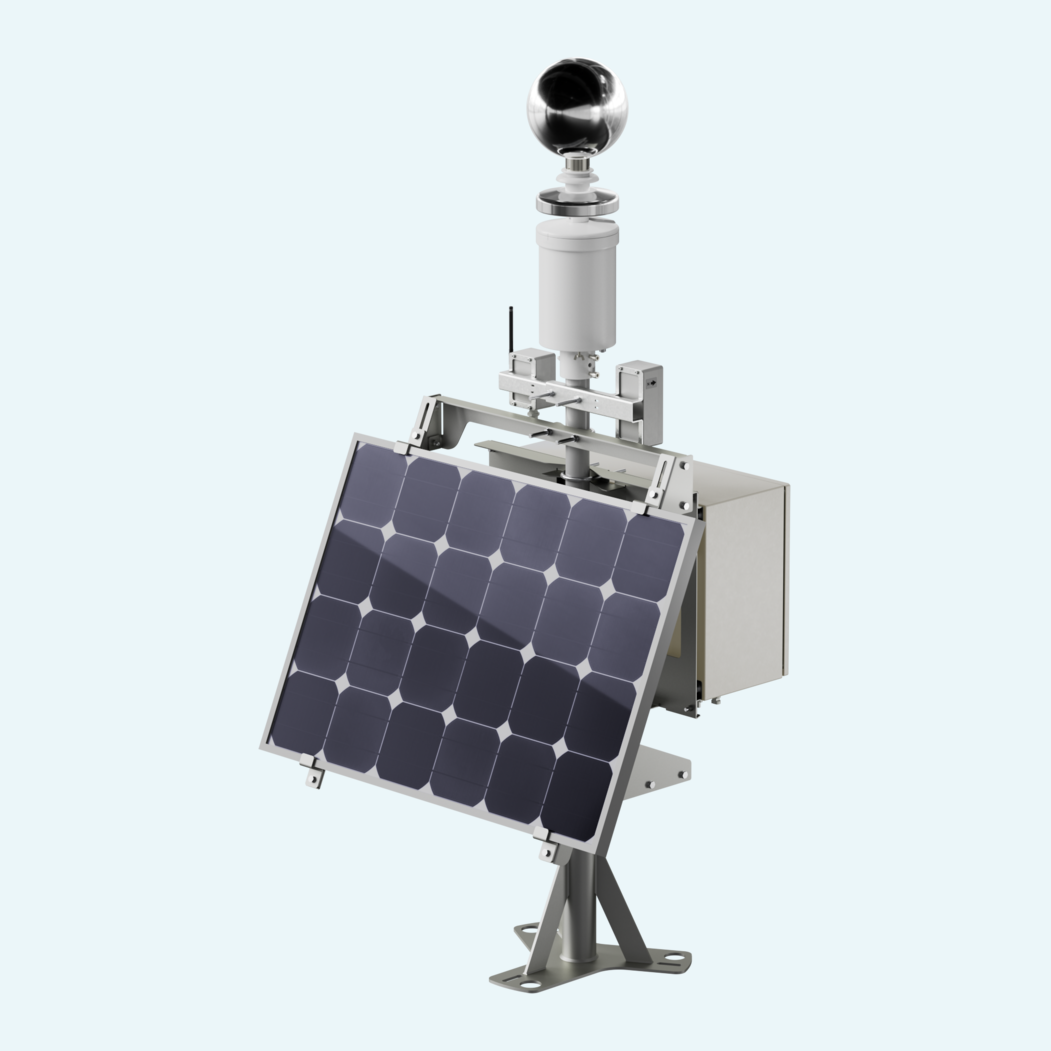

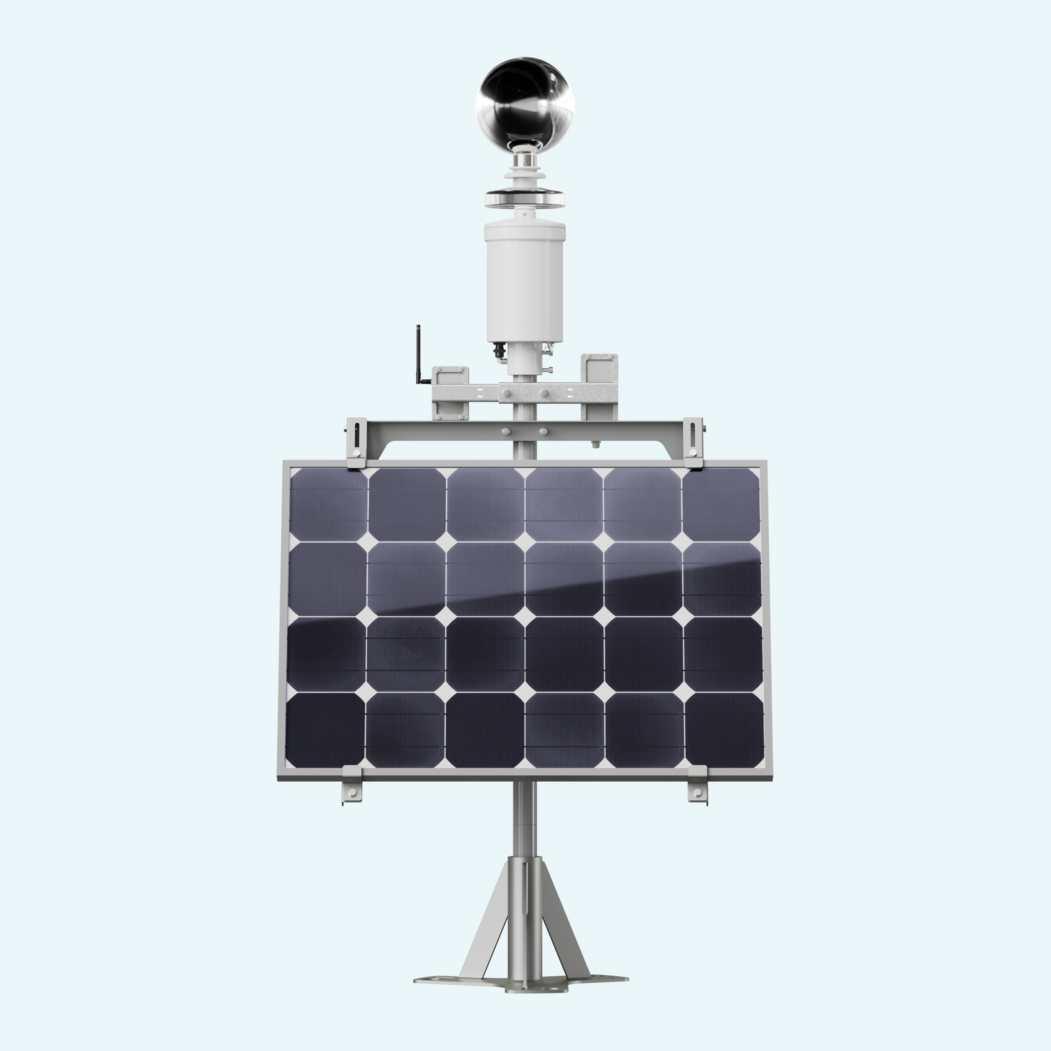

Optional field mounting kit, solar kit, radio module and configuration kit support different deployment scenarios.
