Stored hay and straw can heat up inside the stock long before the risk is visible from outside. Regular core temperature checks help farmers and fire brigades assess stored material, especially after fresh storage or when moisture content is high.
The robust fiberglass probe penetrates hay and straw stocks with a hardened exchangeable cutting tip, the integrated Pt1000 sensor measures internal temperature from -20.0 ... 120.0 °C. Probe lengths of 4 m and 6 m support checks at different storage depths, and the 1.5 m BNC probe cable gives practical handling distance between probe and handheld instrument. The device provides ±0.1 K ±1 digit accuracy from -20 ... +100 °C, plus probe inaccuracy.
A 3-line backlit display, hold function, min/max memory and alarm function make measured values easy to read and track on site. The impact-resistant ABS housing, IP67 protection and approx. 5000 h battery life with 2 x AA alkaline batteries support regular use in demanding storage environments.

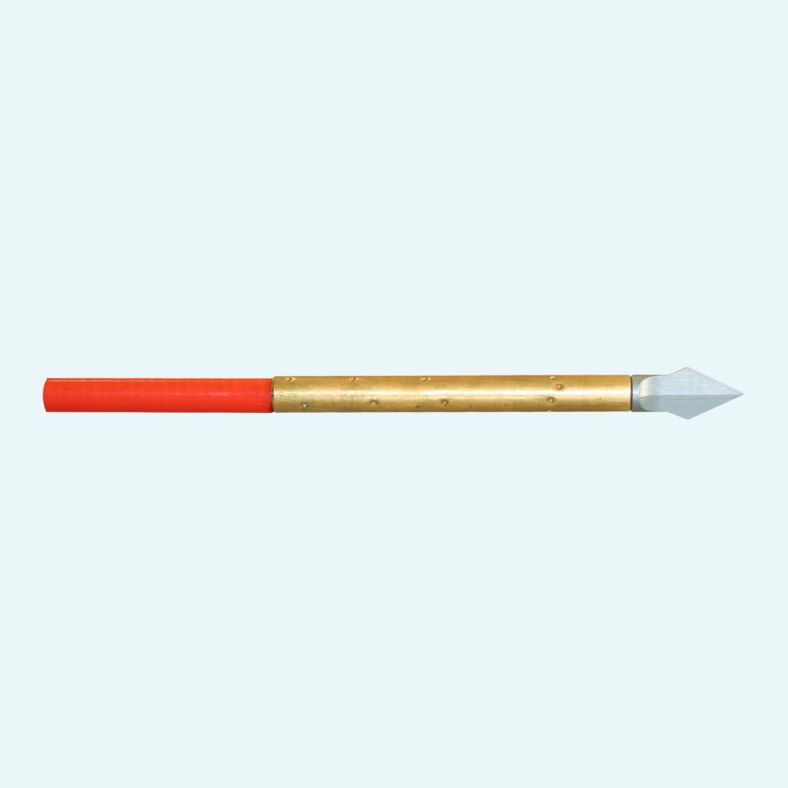

The probe has a Ø 10 mm fiberglass body with a hardened cutting tip. It is available in 4 m and 6 m lengths.
The probe uses a 1.5 m BNC cable for connection to the handheld instrument.
The temperature sensor is integrated in the probe tip and uses Pt1000 2-wire class AA technology.
The display includes battery status, backlight, shatterproof screen protection and overhead display at the push of a button.
The device includes an alarm function, hold function and min/max memory for recorded measured values.
The device uses 2 x AA alkaline batteries and includes configurable automatic switch-off and configurable LCD backlight.
| Number of analog inputs |
1
|
|---|---|
| Temperature inputs |
1
|
| Accuracy temperature |
±0.1 K
|
| Resolution temperature |
0.1 °C
|
| Measuring principle |
RTD
|
| Temperature range |
-20...+120 °C (probe); instrument: -200…+450 °C
|
| Temperature sensor |
Pt1000, Class AA
|
| Operating temperature |
-20...+50 °C
|
|---|---|
| Operating relative humidity |
0...95 %RH
|
| Condensation |
not permitted
|
| Storage temperature |
-20...+70 °C
|
| Degree of protection case |
IP67
|
| Dimensions |
108 mm x 54 mm x 28 mm
|
|---|---|
| Materials |
ABS, Polyester, Case/housing: break-proof ABS, front panel: polyester
|
| Weight |
730 g / 930 g (depending on article)
|
| Battery life |
5000 h
|
|---|---|
| Battery life description |
approx. 5000 h typ. continuous operation
|
| Battery type |
Battery 2x AA alkaline
|
| Power consumption |
0.4 mA, approx. 2 mA with backlight
|
| Connection |
BNC
|
|---|---|
| Cable |
1.5 m 2-wire
|
| Probe Diameter |
10 mm
|
| Probe length |
4 m / 6 m (depending on article)
|
| Material |
Fiberglass
|
| Display presence |
Yes
|
|---|---|
| Description |
3-line with battery status indicator, Backlight, protected by shatterproof screen, overhead display at the push of a button
|
| Number of controls |
4
|
| Type of controls |
4 Button
|
| Display type |
LCD backlit
|
| Certificate |
CE Declaration: Declaration of conformity required where applicable under EU legislation. Manufacturers declaration, nessasary for selling to european market. Requires -prodcut depending-, fulfillment of regulation, like RoHs, LVD, EMC, ATEX, product related |
|---|---|
| Standard / Compliance |
RoHS: Restriction of Hazardous Substances compliance. Manufacturers declaration of compliance to regulation, company/site related REACH: Compliance with REACH requirements for substances and SVHC information. Manufacturers declaration of compliance to regulation, company/site related |
| Compliance Requirement |
EMC directive: Electromagnetic Compatibility |
