Humidity and temperature probe for horizontal mounting

S.TO2

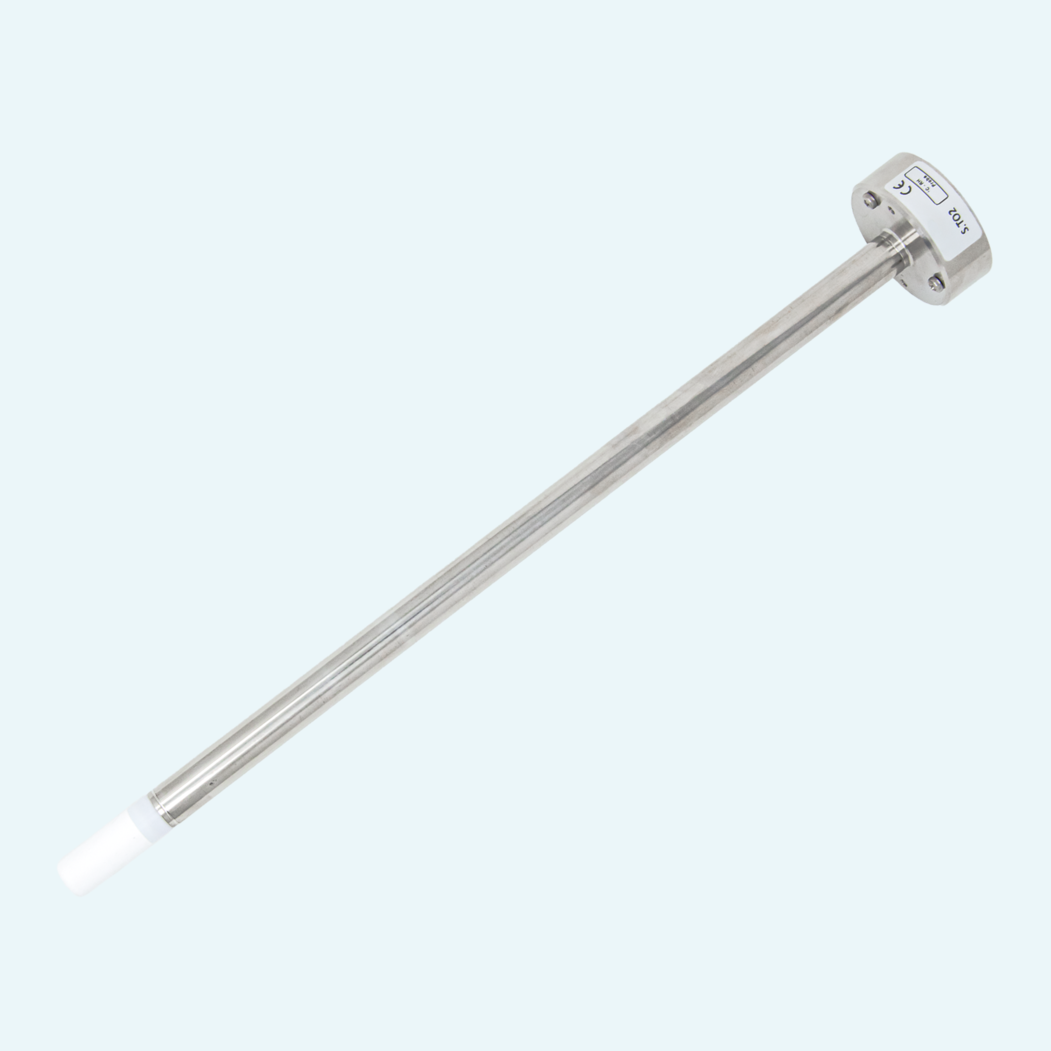

Humidity and temperature probe for horizontal mounting, with 335 mm AISI 304 stem and P7 filter, measuring -50…+200 °C and 0…100 %RH with calculated dew point, wet bulb temperature, absolute humidity and mixing ratio.
Product Inquiry

Introduction

Horizontal installations with deeper measuring points need a probe that reaches further while keeping the instrument easy to access. S.TO2 is the horizontal probe option for compatible HD2717T and HD2817T transmitters, indicators and ON/OFF regulators, supporting temperature and humidity monitoring in industrial and HVAC applications.

The probe measures temperature and relative humidity and enables the connected instrument to calculate dew point, wet bulb temperature, absolute humidity and mixing ratio. Factory calibration and internal calibration data storage support dependable replacement and continued measurement quality during service.

Its 335 mm AISI 304 stem and P7 filter give the S.TO2 a clearly defined mechanical format for horizontal probe configurations. As an interchangeable probe, it can be replaced on-site without interrupting the process.

Deeper placement
335 mm stem length supports measurements further into the measuring point.
Wide temperature span
Covers -50…+200 °C for demanding temperature and humidity monitoring tasks.
Humidity insight
Measures 0…100 %RH and supports dew point, wet bulb and humidity calculations.
Process continuity
Interchangeable probe can be replaced without interrupting the process.
