Connection scheme of the accelerometers

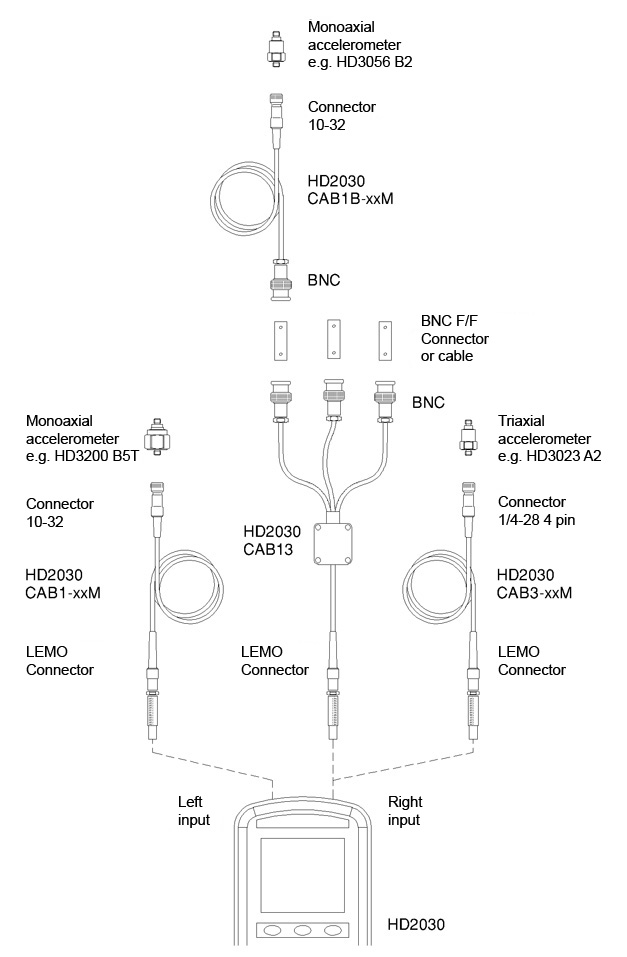

The following picture shows the connection scheme of the accelerometers to the instrument. As an example, we reported the order codes of some accessories. Later in the guide, you can see the detailed use of the different components.



The HD2030 analyzer can measure the vibrations for three different applications (to continue with this guide, select one of the following links):

Hand Arm (HA) for the measurement of the vibrations transmitted to the hand-arm system, e.g. from a tool handle.

Whole Body (WB) for the measurement of the vibrations transmitted to the whole body, e.g. through the driver's seat.

Building Vibration (BV) for the measurement of the vibrations transmitted to the whole body from the buildings.
